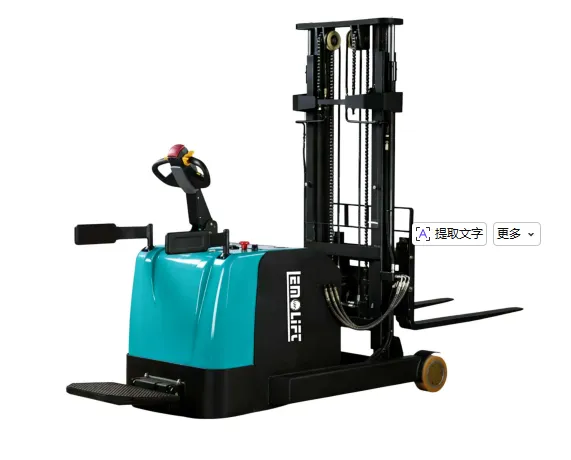

Reach Pallet Stacker

The Reach Pallet Stacker is an efficient electric handling solution designed for warehouse stacking and pallet transport. With AC drive, electric steering, and Curtis control, it delivers reliable performance. It suits narrow aisles, ensuring smooth, safe, and high-efficiency material handling operations.

Send Inquiry

Product Advantages

Electric Steering System

The electric steering system offers precise, effortless control. It reduces operator fatigue during long shifts, enabling smooth, responsive turns in tight warehouse spaces. This system enhances maneuverability and ensures consistent, reliable steering performance.

Curtis Controller

The Curtis controller provides stable, intelligent power management. It optimizes motor performance, ensuring smooth acceleration and deceleration. It enhances operational safety and reliability, supporting consistent, efficient material handling workflows.

Intelligent Control Handle

The intelligent control handle features user-friendly design for intuitive operation. It integrates key functions, allowing operators to manage travel and lifting with ease. It ensures responsive, safe control during every handling task.

Easy Battery Replacement

The easy battery replacement design minimizes downtime for power swaps. Operators can quickly replace the battery without complex tools, ensuring continuous workflow. It supports extended operation hours with simple, fast maintenance.

AC Driving System

The AC driving system delivers powerful, efficient performance. It provides smooth acceleration and consistent speed, reducing energy consumption. It ensures reliable operation in daily warehouse handling tasks.

Small Turning Radius

The small turning radius enables flexible operation in narrow aisles. It allows precise maneuvering in compact spaces, maximizing warehouse storage density. It improves operational efficiency in tight, busy working environments.

Application Scenarios

Warehousing & Distribution Centers

Ideal for stacking pallets in high-density storage areas.

Retail Back-of-Store Operations

Supports quick and organized stock replenishment tasks.

Manufacturing Assembly Lines

Facilitates safe and efficient material movement between stations.

Logistics Cross-Docking Facilities

Enables fast pallet transfer in limited-space operations.

Detailed Specification

Specification	Unit	Value
Power Unit	/	Electric
Operation	/	Standing On
Capacity	kg	1200
Load Centre	mm	500
Forward Distance	mm	360
Fork Tilting Angle	%	3/5
Weight with battery	kg	1930
Min Mast Height	mm	2780
Max Mast Height	mm	5010
Min Fork Height	mm	50
Max Fork height	mm	4500
Overall Length with forks	mm	2780
Overall Width	mm	1020
Fork Size	mm	351001070
Fork Width	mm	680
Aisle width 1000*1200 pallet	mm	2600
Aisle width 800*1200 pallet	mm	2550
Turning Radius	mm	1550/1980
Travel Speed, laden/unladen	km/h	4/5.5
Lift Speed, with/without load	mm/s	70/150
Fall Speed, with/without load	mm/s	150/80
Max Climb, with/without load	%	3/5
Brake	/	Electromagnetic
Drive Motor	kw	AC 1.5
Lifting Motor	kw	DC 3.0
Battery	V/Ah	24/240
Steering Type	/	Electric
Driving Control Mode	/	Curtis

FAQ

Is the Reach Pallet Stacker easy to operate for new users?

Yes, its intelligent control handle and simple layout enable quick learning.

How does the electric steering system benefit daily use?

It reduces operator fatigue and ensures smooth, precise turns in tight spaces.

What maintenance does the Curtis controller require?

Regular checks and cleaning ensure stable, long-term performance of the controller.

Can the battery be replaced quickly during shifts?

Yes, the design supports fast battery swaps to minimize operational downtime.

Is the stacker suitable for continuous daily use?

Yes, the AC driving system delivers reliable performance for long work hours.

Does the small turning radius improve warehouse efficiency?

Yes, it allows flexible operation in narrow aisles, maximizing storage space.

What safety features does the stacker include?

It includes electromagnetic brakes and responsive controls for safe handling.

How does the stacker support different warehouse environments?

Its compact design and maneuverability adapt well to various narrow-space operations.

Hot Tags: reach pallet stacker, China reach pallet stacker manufacturers, suppliers, factory

Product Specifications

Characteristics	Type	LM-QY1545DB
	Power(electricity, diesel, LPG,petrol, manual)	Electric
	Operation(manual, walkie, side-standing, picker)	Seated Type
	Rated load capacity	1500Q(kg)
	Load center distance	500C(mm)
	Front overhang	180X(mm)
	Wheelbase	1355Y(mm)
Weight	Self weight with battery	2180kg
Wheel/ chasis	Wheel type	PU
	Front wheelspecification	φ254*104(mm)
	Drive wheel specification	φ230*75(mm)
	Balance Wheel specification	φ150*50(mm)
	Wheelbase(the front wheel)	984(mm)
	Wheelbase(the rearwheel)	772(mm)
Dimensions	Vehicle height, mast retracted	2120(mm)
	Standard lifting height	4500(mm)
	Mast height, extended	5485(mm)
	Overhead guardrail height	2090(mm)
	Forks height,mastretracted	35(mm)
	Mast/forks tilting angle(the front/the rear)	3/5a/β(°)
	Vehicle body length (forks included)	2250(mm)
	Vehicle body length (forks excluded)	1689(mm)
	Vehicle body width	1100(mm)
	Forks dimensions	35/100/1070(mm)
	Forks adjustment dimensions	210-705(mm)
	Forward moving distance	500(mm)
	The min. ground clearance(Wheelbase center)	80(mm)
	Stacking aisle width, pallet1m×1.2m(1.2m cross forks)	2764(mm)
	The min.turning radius	1600(mm)
Performance	Travelling speed, unladen/full-loaded	6.5/5.5km/h
	Lift speed unladen/full-loaded	0.135/0.110m/s
	Lower speed unladen/full-loaded	0.085/0.132m/s
	The max.gradability,unladen/full-loaded	8/4%
	Drive brake	Electromagnetic
Motor	Drive motor power	2.5kw
	Lift motor power	3kw
	Battery type	Lead-acid / Lithium
	Battery	24V/280Ah
	Charger	24V/40V
Others	Drive control mode	AC
Others	According to En12053(noise level near drivers' ears)	75dB(A)
