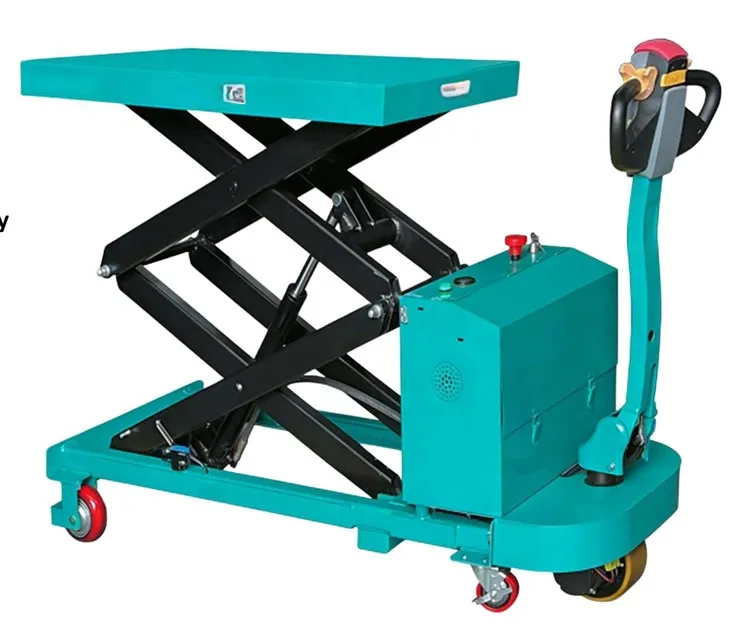

Heavy Duty Lift Table

The Limo Heavy Duty Lift Table is engineered for high-performance material handling in demanding industrial environments. Designed to enhance workflow efficiency and safety, this lift table combines durability, precision, and customizable features to meet the specific needs of global businesses.
◆LM-ETBDS
◆ Load Capacity: 1000Kg
◆ Voltage: 24V
◆ Table Dimension: 1000*600*60
◆ Battery: 60v
◆ Power: 24V 750W

Send Inquiry

Key Features:

'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.

Industrial Strength & Durability

Constructed with premium steel and reinforced scissor arms, the Limo Heavy Duty Lift Table withstands heavy loads and repetitive industrial operations. Its robust design ensures long-term reliability under continuous use.

High Load Capacity

Supporting capacities from 1,000 kg to 5,000 kg (customizable based on client requirements), this lift table is ideal for factories, warehouses, automotive assembly lines, and logistics centers.

Precision Lifting & Smooth Operation

Equipped with high-quality hydraulic cylinders and precision-machined components, the table provides stable, vibration-free lifting. Optional electric or semi-electric control systems are available for customized automation solutions.

Safety-Oriented Design

Features include overload protection, safety lock mechanisms, and non-slip platforms to ensure operator safety. Safety compliance can be tailored to meet international standards such as CE, ISO, or UL upon request.

Heavy duty lift table customization options：

Limo offers full OEM & ODM support, allowing clients to customize:
Platform dimensions and height range
Load capacity requirements
Surface coatings (anti-slip, corrosion-resistant, or stainless steel)
Control systems (manual, hydraulic, electric, or semi-electric)
Branding and private labeling
Reliable Manufacturing & Quality Assurance
Manufactured in Limo's state-of-the-art facility, every lift table undergoes multi-stage quality inspection, including hydraulic pressure testing, welding integrity checks, and load stability verification.

Product Specifications

Specification	Unit	ETB100DS	ETB150DS	ETB200DS
Capacity	kg	1000	1500	2000
Min. Height	mm	460	400	450
Max. Height	mm	1500	1000	1000
Table Size	mm	100060060	120080080	1500100080
Wheel Dia	mm	Φ210	Φ250	-
Voltage	V	24	24	24
Power	kW	0.75	1.5	-
Battery	Ah	60	80	-
Input Power	V	110-220	110-220	110-220

fAQ

Can I customize the load capacity of the reach truck?

Yes. LIMO reach trucks offer configurable load capacities from 1000kg to 2000kg. For projects requiring special payloads, our engineering team can adjust structural components to safely handle heavier or lighter loads according to your warehouse needs.

Is it possible to adjust the lifting height for my warehouse layout?

Absolutely. Standard models cover max heights from 1000mm to 1500mm, but we can customize lifting heights to fit specific rack levels or ceiling constraints, ensuring efficient and safe high-level storage.

Can the table size or platform dimensions be customized?

Yes. Standard table sizes range from 1000×600mm to 1500×1000mm, but we can produce non-standard dimensions to match unique pallet sizes or material handling requirements.

Can the reach truck be adapted for different power systems or battery capacities?

Yes. Standard options include 24V voltage with 60Ah–80Ah batteries, and input power 110–220V. We can integrate custom voltage systems, lithium batteries, or higher capacity batteries for longer operation or specific workflow demands.

Can wheel diameter and chassis design be customized for special conditions?

Yes. While standard wheel diameters are Φ210–Φ250mm, we can provide special wheel sizes or chassis adjustments for uneven floors, narrow aisles, or other unique warehouse environments, ensuring smooth operation and stability.
